Timeseries Data

Timeseries Data Messages

Note

Visit the concept overview for Data Streams to understand how time series data references are constructed using one Asset name and one Data Stream name as a pair.

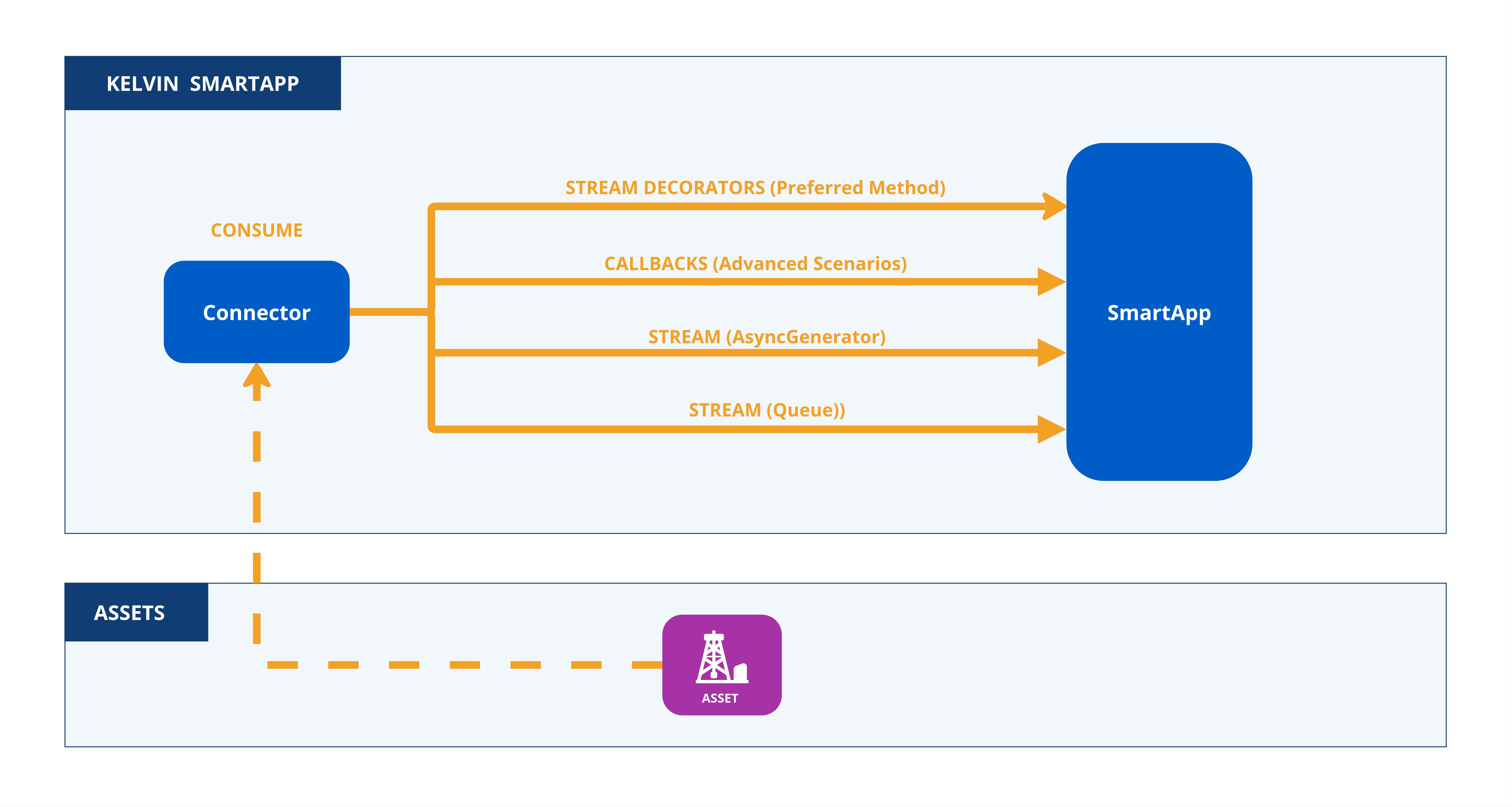

Timeseries data from Assets can be served to the Kelvin SmartApp™ in multiple ways, depending on the preferred data consumption method.

app.yaml setup

To consume streaming data, you must define the inputs section in the app.yaml file.

Note

That means that Kelvin SmartApps™ is only going to be able to consume the specified inputs. i.e.:

data_streams:
  inputs:
    - name: motor_temperature
      data_type: number
    - name: motor_state
      data_type: string

inputs is an array (list) composed by two fields:

• A unique name to identify the input. This will be used in the Python code to reference the input. It must contain only lowercase alphanumeric characters. The characters ., _ and - are allowed to separate words instead of a space BUT can not be at the beginning or end of the name.
• An expected data type, which can be: number, boolean or string.

Now that the Kelvin SmartApps™ inputs are defined, use one of the following methods to monitor and react to new incoming messages.

Stream Decorators (Preferred)

The preferred and simplest method for consuming incoming timeseries data is to create a Stream Decorator function.

You use the Data Stream filter to process only the relevant data.

Note

You can use filtering to only react and process specific incoming messages.

Note

You can see a full list of stream decorators available in the SDK documentation section here.

from kelvin.application import KelvinApp
from kelvin.message.typing import AssetDataMessage

app = KelvinApp()

# Filter by input data stream example 1
@app.stream(inputs=["motor_temperature", "motor_state"])
async def handle_specific_inputs(msg: AssetDataMessage) -> None:
    print(f"From specific inputs: {msg.payload}")

# Filter by input data stream example 2
async def handle_inputs(msg: AssetDataMessage) -> None:
    print(f"From specific inputs: {msg.payload}")

app.stream(handle_inputs, inputs=["motor_temperature"])

app.run()

Callbacks (Advanced)

For advanced scenarios, you can define callbacks for specific lifecycle events.

Callbacks work on a "per asset" message, so you will need to manually program filters for individual data stream processing.

The callback on_asset_input can be used to read every input flowing into Kelvin SmartApps™:

from kelvin.application import KelvinApp, AssetInfo
from kelvin.message.typing import AssetDataMessage

app = KelvinApp()

async def on_asset_input(msg: AssetDataMessage):
    """Called for data messages from asset inputs"""
    print(f"Data from {msg.resource}: {msg.payload}")

# Assign callbacks
app.on_asset_input = on_asset_input

app.run()

Asynchronous Consumption

This approach pauses program execution until new data arrives, resuming only when data is available. To enhance efficiency and reduce unnecessary executions, filters can also be applied to limit the types of data that trigger events.

AsyncGeneratorQueue

Streams are a different way of filtering inputs as a Python Async Generator, also based upon a filter function.

Info

Different Data filters are available within the filters class, such as input_equals(input: str), resource_equals(resource: KRN) and asset_equals(asset: str). On the following example we're gonna use the most common and expected use case (input_equals(input: str)).

Filters to limit which inputs are monitored can be expressed as filters.input_equals(input: str).

import asyncio
from typing import AsyncGenerator # AsyncGenerator import

from kelvin.application import KelvinApp, filters # filters import
from kelvin.message import Number # Number (Input Type) import


async def main() -> None:
    app = KelvinApp()

    # Create a Filtered Stream with Temperature (Number) Input Messages
    motor_temperature_msg_stream: AsyncGenerator[Number, None] = app.stream_filter(filters.input_equals("motor_temperature"))

    await app.connect()

    # Wait & Read new Temperature Inputs
    async for motor_temperature_msg in motor_temperature_msg_stream:
        print("Received Motor Temperature: ", motor_temperature_msg)


if __name__ == "__main__":
    asyncio.run(main())

Filters can be used to filter a specific subset of the Kelvin Inputs as a Python Message Queue based upon a filter function.

Info

Different Data filters are available within the filters class, such as input_equals(input: str), resource_equals(resource: KRN) and asset_equals(asset: str). On the following example we're gonna use the most common and expected use case (input_equals(input: str)).

Filters to limit which inputs are monitored can be expressed as filters.input_equals(input: str).

import asyncio
from asyncio import Queue # Queue import

from kelvin.application import KelvinApp, filters # filters import
from kelvin.message import Number # Number (Input Type) import


async def main() -> None:
    app = KelvinApp()

    # Create a Filtered Queue with Temperature (Number) Input Messages
    motor_temperature_msg_queue: Queue[Number] = app.filter(filters.input_equals("motor_temperature"))

    await app.connect()

    while True:
        # Wait & Read new Temperature Inputs
        motor_temperature_msg = await motor_temperature_msg_queue.get()

        print("Received Motor Temperature: ", motor_temperature_msg)


if __name__ == "__main__":
    asyncio.run(main())

Filters

When working with queues or async streams, you can apply filters to receive only the timeseries data that matches your criteria.

Note

In our earlier examples above you will see how we use filters.

Built-in Filters

There are a number of built-in filters available.

By Data Stream Name

You can receive Messages that only have certain Data Stream names.

filters.input_equals("temperature")
filters.input_equals(["temperature", "pressure"])

By Asset Name

You can receive Messages that only have certain Asset names.

filters.asset_equals("my-asset")
filters.asset_equals(["asset-1", "asset-2"])

By KRN Resource

You can receive Messages that only have certain Resources by Kelvin Resource Name (KRN).

Note

You can see a full list of KRN names in Developer Tools KRN page here.

filters.resource_equals(krn_instance)
filters.resource_equals([krn1, krn2])

By Message Type

You can receive certain types of Messages only.

filters.is_data_message(msg)
filters.is_asset_data_message(msg)
filters.is_control_status_message(msg)
filters.is_custom_action(msg)
filters.is_data_quality_message(msg)

Custom Filters

You can also create your own custom filters.

For example, you only want to receive Messages where the value is greater than 100.

def custom_filter(msg: Message) -> bool:
    """Filter for high-value readings"""
    return msg.payload > 100

queue = app.filter(custom_filter)
