Edge Requirements

On this page you will learn about the network, hardware, and system requirements for setting up and running Kelvin edge clusters.

Overview

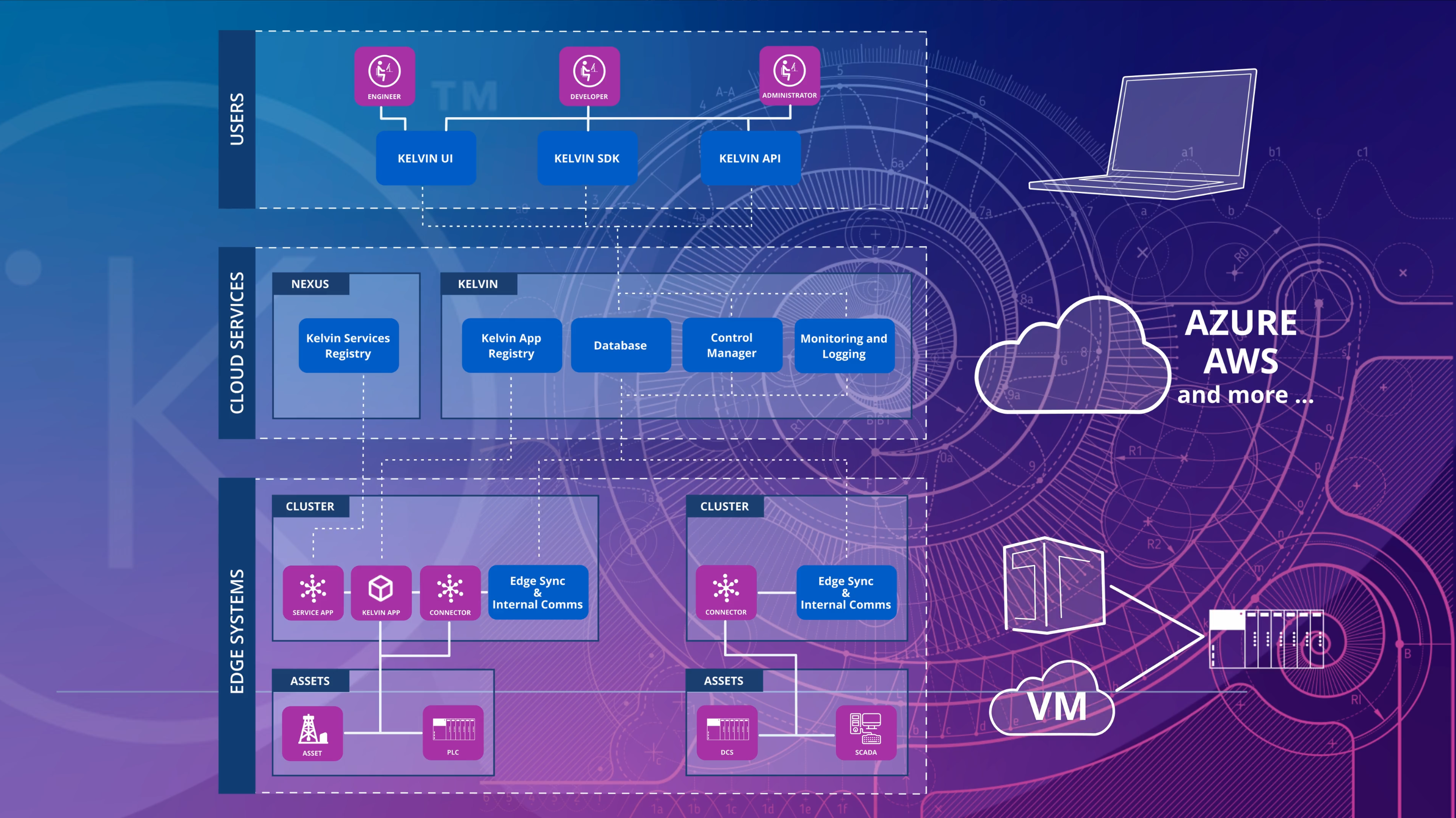

Edge computers can be physical machines near assets, virtual machines on local or cloud servers, or cloud-based PaaS instances. You can read more about possible setup architectures here.

This guide is essential for administrators working in tightly controlled network environments with strict firewall policies. It provides clear guidance on which ports and services must be accessible during installation versus ongoing operations.

The requirements in this section apply only to users deploying on physical hardware or virtual machines.

If you are using a managed cloud PaaS solution like EKS, AKS, or GKE, these infrastructure-level requirements are handled transparently by the cloud provider.

Initial Installation Requirements

These requirements apply when you are first installing the Kelvin cluster. After successful installation, you can close these ports except for those listed in Operational Requirements.

Important for Secure Network Environments

If you work in a closed LAN environment with strict firewall policies, you will need to temporarily open these ports and domains during cluster installation.

Once installation is complete, you can close all of these except the ports listed in the Operational Requirements section.

Firewall Requirements for Installation

Configure your firewall to allow outbound connections to the following services during cluster installation:

Service / Domain Port Protocol Purpose
nexus.kelvininc.com 443 HTTPS Download Kelvin cluster components and container images
registry.kelvin.ai 443 HTTPS Download Kelvin cluster components and container images (Will replace nexus in future, no fixed plan at the moment)
docker.io 443 HTTPS Download container images from Docker Hub
get.k3s.io 443 HTTPS Download K3s installation script (for K3s clusters only)
archive.ubuntu.com 80, 443 HTTP/HTTPS Ubuntu package repository access
security.ubuntu.com 80, 443 HTTP/HTTPS Ubuntu security updates
www.google.com 80, 443 HTTP/HTTPS Backup check if edge has access to the Internet if it can not access url http://archive.ubuntu.com

After Installation

Once your cluster is successfully provisioned and registered with the Kelvin Platform, you can close access to:

  • docker.io
  • get.k3s.io
  • archive.ubuntu.com
  • security.ubuntu.com

Only nexus.kelvininc.com:443 and registry.kelvin.ai:443 needs to remain open for ongoing cluster operations (see Operational Requirements).

Operational Requirements

These requirements must be met continuously while the cluster is running. These ports and services must remain accessible.

Communication Ports

The following ports must remain open in your firewall for your cluster to communicate with the Kelvin Platform and your Assets.

Firewall Configuration Best Practice

Ensure your firewall is stateful (so return packets are automatically permitted).

If your firewall is stateless, add inbound rules permitting ESTABLISHED/RELATED TCP traffic back to the specified ports.

Rule Placement

In your firewall, make sure you place these allow rules before any general "deny" rules.

Cloud Communication

Your cluster needs to maintain communication with the Kelvin Platform/Nexus:

Note

These communication ports need to be open for all nodes in the cluster.

Service / Domain Port Protocol Purpose
nexus.kelvininc.com 443 HTTPS Ongoing communication with Kelvin Platform for downloading (pulling) Kelvin service images.
nexus.kelvininc.com 5000 TCP Kelvin Platform private registry for pulling application images when new workloads are deployed.

Cluster Internal Communication

For multi-node clusters, the following ports are required for inter-node communication:

Single Node Deployments

If you are using a Docker single node solution, you can skip this section. These ports are only required for multi-node Kubernetes/K3s clusters.

Description Port Type Port No. Comments
Main Node / Server Node TCP 443, 5000, 6443 Required on the main/server node for cluster management and container registry
Worker Nodes TCP 443, 5000 Required on all worker nodes for cluster communication
Worker Nodes UDP 8472 Required for overlay networking (Flannel VXLAN) between worker nodes

Kelvin SmartApp™ Services (Optional)

These ports are only needed if you deploy Kelvin SmartApps™ with local services that need to be accessed from your network:

Description Port Type Port No. When Required
Kelvin SmartApp™ Services TCP/UDP 30000 - 32767 Only open these ports if local services are deployed from Kelvin SmartApps™ and require local network access

Asset Communication Ports

If you communicate via Ethernet to your Assets (such as using Modbus TCP or OPC-UA), you will need to refer to your Asset's documentation to determine which ports must be opened:

Description Port Type Port No. Comments
Asset Related Communications TCP/UDP Vendor Specific Refer to your Asset's manual for the specific ports used. Common examples: Modbus TCP (502), OPC-UA (4840), etc.

Network Requirements

This section covers network configuration requirements for your cluster.

Static IP Address for Main Node

If you plan to use a Kubernetes or K3s solution and will set up a cluster with multiple nodes, the Main Node must have a static IP address.

Future Scalability

Even if you start with only one node but may need future scaling options, ensure the Main Node has a static IP address from the beginning.

Hardware Requirements

This section covers the minimum hardware specifications for running Kelvin clusters.

Resource Planning

Actual CPU and RAM requirements will depend heavily on:

  • The number of Kelvin SmartApps™ you want to deploy
  • The resource intensity of those SmartApps™
  • The quantity of Assets you are monitoring

Resource-hungry apps or deploying tens or hundreds of Kelvin SmartApps™ will require more resources than the minimums listed below.

Storage Recommendation

In all cases, SSD disks are strongly recommended for optimal performance.

Kubernetes Physical Nodes

For physical machines running Kubernetes:

ARM64 Processor Compatibility

If you plan to buy hardware with arm64 processors, check first with Kelvin to ensure the Connection you want to use to collect data from your Assets is compiled for the arm64 processor.

All Connections are compatible with x86_64 processors.

Processor Min CPU Cores Min RAM Min HDD
x86_64 2 4 GB 25 GB
arm64 2 2 GB 25 GB

Kubernetes Virtual Machines

For virtual machine deployments, size your VMs according to your expected workload:

Deployment Size No of Nodes Min VCPUs Min RAM
Small 1 - 10 2 4 GB
Medium 10 - 100 4 8 GB
Large 100 - 250 8 16 GB

Docker Physical Nodes

For physical machines running Docker (single-node deployments):

ARM64 Processor Compatibility

If you plan to buy hardware with arm64 processors, check first with Kelvin to ensure the Connection you want to use to collect data from your Assets is compiled for the arm64 processor.

All Connections are compatible with x86_64 processors.

Processor Min CPU Cores Min RAM Min HDD
x86_64 2 2 GB 20 GB
arm64 2 1 GB 16 GB

Docker Platform Support

You can see the supported platforms and limitations at the Docker website here.

Operating System Requirements

This section covers supported operating systems for physical hardware and virtual machine deployments.

If you are installing the Kelvin Edge onto physical hardware or a virtual machine, we strongly recommend using Ubuntu Server as your operating system.

Ubuntu LTS Versions

All our software is tested on the LTS (Long Term Support) releases of Ubuntu Server.

We recommend using Ubuntu Server version 22.04 or newer.

Other Operating Systems

Technically, you can install on any operating system that fully supports Kubernetes or Docker. However:

Compatibility Considerations

When using operating systems other than Ubuntu Server, you may find some Kelvin SmartApps™ do not fully run as expected, especially if your SmartApp:

  • Runs in privileged mode
  • Utilizes additional hardware resources such as a GPU
  • Requires specific kernel features

Cluster Setup Options

This section explains the different ways you can deploy and manage your Kelvin edge cluster.

Kelvin Platform is built on Kubernetes, providing a secure and scalable infrastructure. It supports various Kubernetes flavors and deployment options to match your operational needs.

Supported Infrastructure Options

Self-Managed Kubernetes Flavors:

  • Kubernetes (standard)
  • K3s (lightweight Kubernetes)
  • Other Kubernetes-compatible distributions

Cloud PaaS Kubernetes Services:

  • AKS – Azure Kubernetes Service
  • EKS – Amazon Elastic Kubernetes Service
  • GKE – Google Kubernetes Engine

Kelvin Managed Solutions

Choose these options if you want Kelvin to handle all cluster installation, maintenance, and upgrades automatically.

If you do not have Kubernetes experience or do not want to spend effort managing your own Kubernetes clusters, Kelvin can fully manage your cluster for you.

Zero Kubernetes Knowledge Required

With Kelvin-managed solutions, you only need to provide a Linux system (minimum Ubuntu 22.04). Kelvin handles everything else automatically—from installation and setup to ongoing maintenance and upgrades.

Kelvin offers two fully managed solutions:

Option Best For Key Advantages
K3s Production environments requiring scalability Full Kubernetes solution, scalable across multiple nodes, automated cluster management
Docker Single-node deployments on low-resource devices Lightweight, simple installation, minimal resource requirements

K3s - Managed Kubernetes Cluster

Select K3s from the Kelvin UI when creating your cluster.

No Kubernetes Knowledge Required

Just provide a Linux system (minimum Ubuntu 22.04). Kelvin handles the rest.

Key Features:

  • Full Kubernetes solution with multi-node support
  • Automatic installation and configuration
  • Managed upgrades and maintenance
  • Scalable from single node to multiple nodes

Technical Specifications:

  • Max 110 pods per node
  • 16 pods reserved per cluster for core system Kelvin SmartApps™
  • Core services consume 2 GB storage space
  • Pod CIDR: 10.42.0.0/16
  • Service CIDR: 10.43.0.0/24

How to Set Up:

Refer to Provision a K3s Cluster for step-by-step setup instructions.

Figure: Creating a new K3s cluster in the Kelvin UI

Docker - Managed Single Node

Select Docker from the Kelvin UI when creating your cluster.

No Docker Knowledge Required

Just provide a Linux system (minimum Ubuntu 22.04) with Docker preinstalled.

Kelvin handles the rest.

Key Features:

  • Lightweight single-node installation
  • Ideal for low-resource edge devices
  • Simplified management
  • Automatic setup and maintenance

Best Use Cases:

  • Edge devices with limited resources
  • Single-asset monitoring scenarios
  • IoT gateway deployments
  • Development and testing environments

How to Set Up:

Refer to Provision Docker Cluster for step-by-step setup instructions.

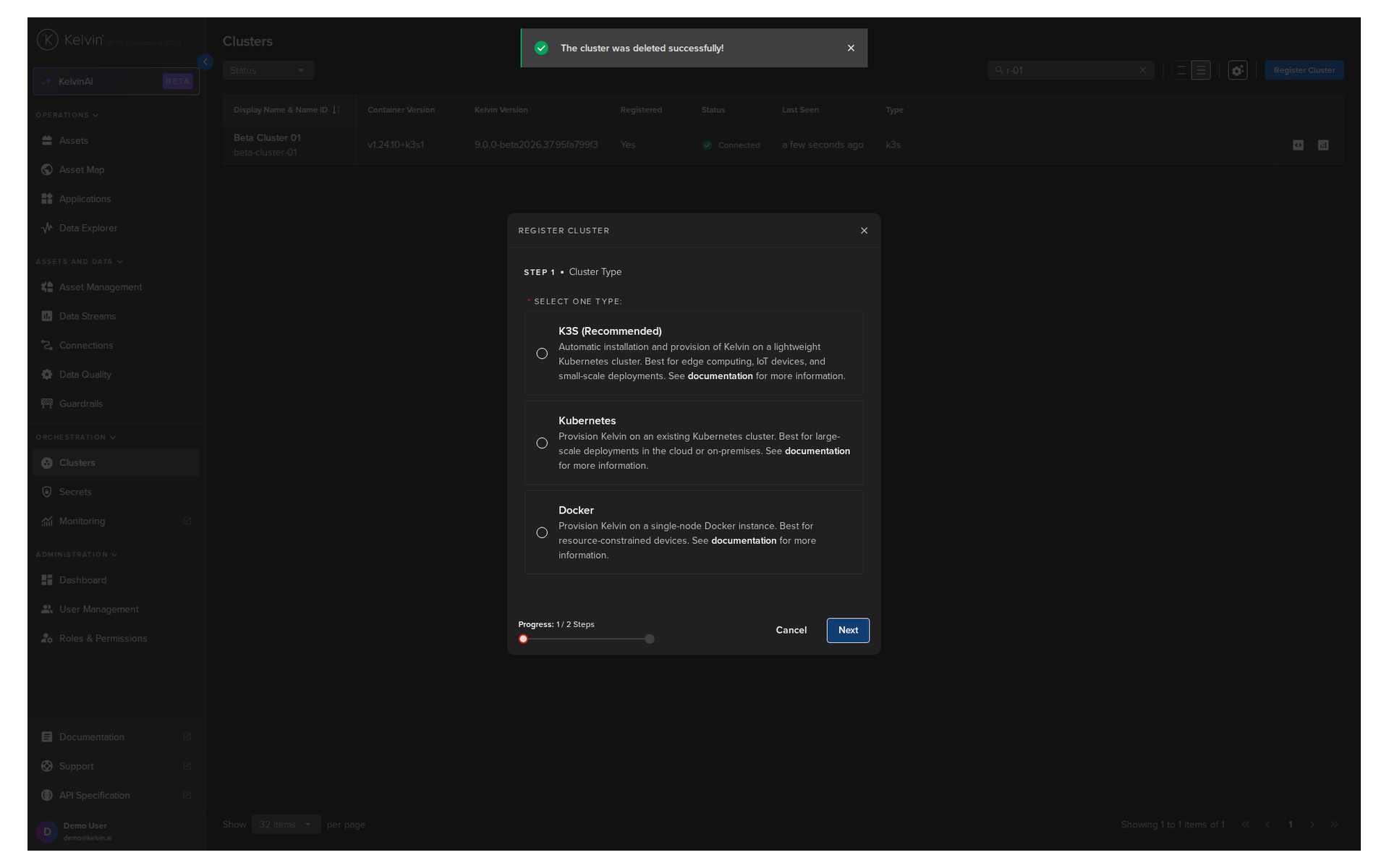

Figure: Creating a new Docker cluster in the Kelvin UI

Self-Managed Solutions

Choose these options if you want to manage your own Kubernetes infrastructure.

If you already run your own Kubernetes infrastructure or prefer full control over your cluster configuration, you can choose a self-managed option.

Cluster Type Selection

Only select K3s in the Kelvin UI if Kelvin is managing the cluster.

Use Kubernetes for self-managed K3s or any other self-managed Kubernetes distribution.

Figure: Creating a self-managed Kubernetes cluster in the Kelvin UI

Self-Managed Kubernetes (Physical/VM)

For generic open-source Kubernetes deployments on bare metal or virtual machines (local data center or cloud).

Your Responsibilities:

  • Kubernetes installation and configuration
  • Cluster maintenance and upgrades
  • Resource sizing and capacity planning
  • High availability and disaster recovery

Useful Resources:

Self-Managed K3s (Physical/VM)

For users managing their own K3s setup on low-resource devices or virtual machines.

Your Responsibilities:

  • K3s installation and configuration
  • Cluster maintenance and upgrades
  • Node management

Useful Resources:

Amazon EKS (Cloud)

Use this option to run your Kubernetes cluster in AWS using Amazon EKS.

What Kelvin Does

Kelvin will deploy core services into your managed EKS cluster.

Your Responsibilities:

  • EKS cluster setup and configuration
  • Resource sizing and instance type selection
  • Operational costs and billing optimization
  • AWS service quotas and regional availability

Useful Resources:

Microsoft AKS (Cloud)

Use this option to run your Kubernetes cluster in Azure using Microsoft AKS.

What Kelvin Does

Kelvin will deploy core services into your managed AKS cluster.

Your Responsibilities:

  • AKS cluster setup and configuration
  • Service quotas and regional availability
  • Billing optimization and cost management
  • Azure-specific networking and security

Useful Resources:

Google GKE (Cloud)

Use this option to run your Kubernetes cluster in Google Cloud using GKE.

What Kelvin Does

Kelvin will deploy core services into your managed GKE cluster.

Your Responsibilities:

  • GKE cluster setup and configuration
  • Resource sizing and machine type selection
  • Cost optimization and quota management
  • Google Cloud-specific networking and security

Documentation Available

Detailed GKE integration documentation will be added in future updates. Please contact Kelvin support for current guidance on GKE deployments.
